SPECIFICATIONS
| LOA | 22m (72’2”) |
| L on deck | 20.86m (68’6”) |
| LWL | 19.43m (63’9”) |
| Beam | 6.29m (20’8”) |
| Draft | 1.60m (5’3”) |
| Displacement | 67 tonnes |
| Hull, frames, tankage | Alustar / Sealium high strength aluminium |
| Paint system | Awlgrip to high gloss finish |
| Engines | Caterpillar 3412, A-rated (340hp@1800rpm) |
| Gearboxes | ZF 250 A |
| Drive systems | Low Rez couplings and engine mounts |
| Propellors | 35” x 31 four-blade Henleys |
| Stabilisers | Trac 300 |
| Thrusters | Trac 40 |
| Fuel polishing | Alfa Laval Emmie |
| Fire control | Wormald T1000 marine controller |
| Sound/vibration Suppression | Lattimer Accoustics, Acustop |
| Speed | 10.0 knots @ 1400 rpm |
| Range | 2690nm @ 8.8 knots 1930nm@ 10 knots 1031nm @ 12.0 knots |
| Fuel consumption | 35l/hr @1200 rpm (8.8 kts) 55.7l/hr @ 1400 rpm (10.0 kts) |
| Generators | Onan e-QD 27kW/50Hz (main) Onan 11kW/50Hz (supplementary) |
| Batteries | 1500 amp/hrs 24v |
| Inverters | Mastervolt 2500 Mastervolt 5000 |
| Shore converter | Asea 30kW Frequency Converter |
| Fuel | 10,750 litres (2850 gallons) |
| Fresh water | 2,500 litres (685 gallons) |
| Water maker | FCI 200 litres/hr |
| Gray water | 810 litres (215 gallons) |
| Black water | 700 litres (185 gallons) |

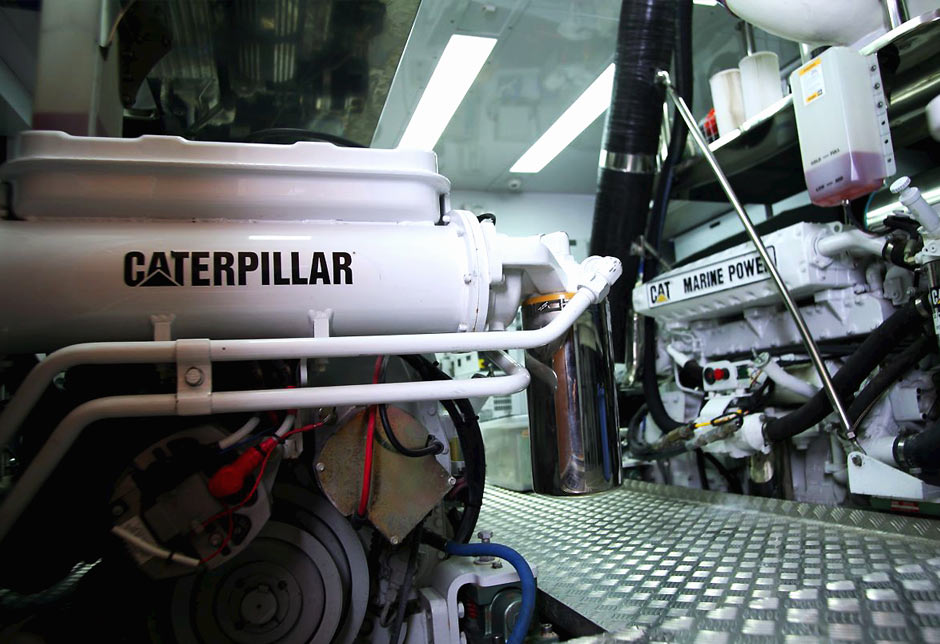

Caterpillar 3412 Engines, A-Rated
Lo-Rez Drive Shaft Flexible Coupling

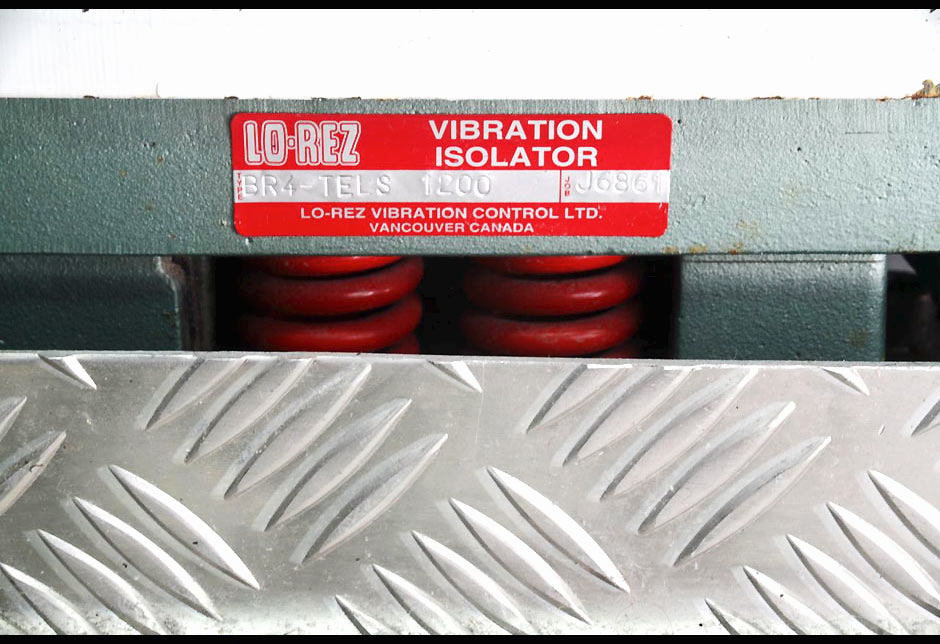

Lo-Rez Vibration Isolator
| Program Logic Controller | Custom |
| Systems software | Idea Vessel Information Organiser |
| Communications | Satellite Fleet 77 PABX Panasonic ICOM VHF ICOM HF |
| Autopilot | Simrad AP 25 |
| Depth sounder, Wind instruments | Marestrom |
| Sonar | Wesmar SS 395 |
| Radar | Furuno |
| Plotter | Furuno |
| Software | Nobeltec |
| CCTV | Bosch |
| Night vision | Flir |
| Security alarms | Blue Ray Marine |
| Safety at sea | AIS Simrad Zodiac 12-man life-raft Iridium 9505A Garmin handheld GPS EPIRBs x 3 Auto-inflating PFDs x 12 Life jackets x 20 Simrad SART Flares and grab bag |
| Windlass | Maxwell 4500 |
| Anchors | Manson 80kg Fortress 21kg |
| Fenders | 10 x Hutchwilko 4 x rigid |
| Passarelle | Exitengineering folding carbon fibre |
| Deckwash | Fresh and salt |
| Steering | Kobelt hydraulic |
| Doors/windows | Pacific Coast Marine |
| Hatches | Lewmar |
| Port lights/fairleads | Southern Stainless |
| Aircon | Cruisair 118,000btu |
| Entertainment | Marantz hi-fi with RTI remote x 3 |
| Video screens | Sony LCD & LG |
| Heads | Tecma x 5 (fresh water) 1 salt water optional |
| Lighting | LED throughout (fluro in engine room) |
| Wine storage | Vintec Transtherm |
| Pantry | Haefele |
| Stove/dishwasher | Miele |
| Barbecue | Galleymate s/s |
| Washing machine and dryer | Miele |
| Fridges | Liebher and U-Line |
| Compactor | Insinkerator |
| Fridge/icemaker | U-Line |
| Crockery | Rosenthal, Jade |
| Cutlery | Alessi |
| Glassware | Bormioli |
| Chef’s knives | Wustof Classic |
| Pans | Fissler and Scanpan |
| Bed linen, towels | Yves Delorme |
| Duvettes, pillows | Hungarian duck down |
| Swim platform | with safety grab rails and removable custom swim ladder |
| First-aid | Automated external defibrillator Newlife Intensity Airsep oxygen maker Ferno portable oxygen kit Full Cat 1 first-aid kit Mosquito screens on portholes, ceiling mounted nets |
| Valuables | Sandalford ES20 electronic combination safe |

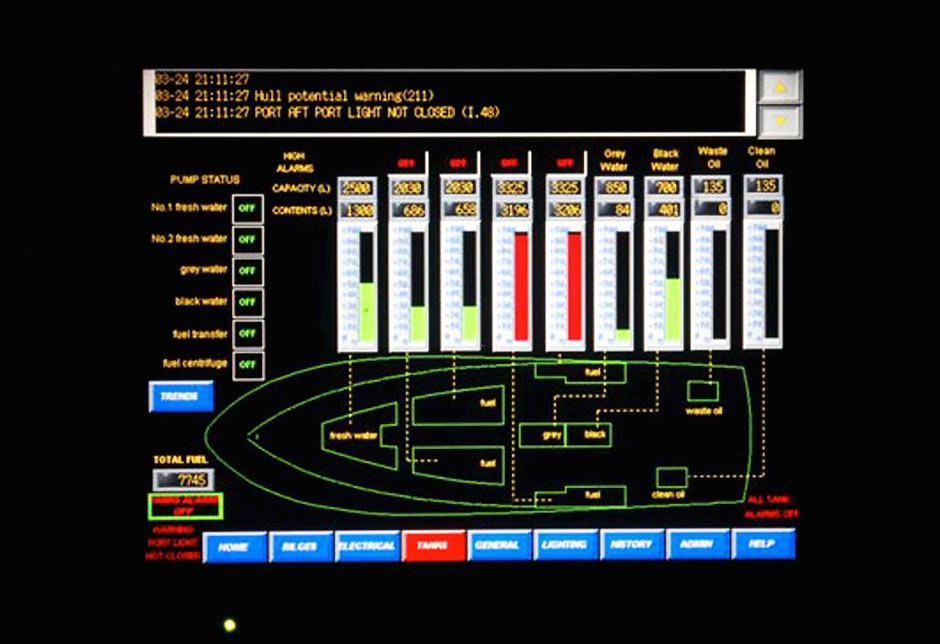

Program Logic Controller
Vessel Information Organiser
Wine Cellar (detail)
Pantry (detail)
Laundry (detail)
| Tender | Reef Rider 4.2m aluminium RIB with 40hp Honda 4-stroke outboard and Garmin plotter/sounder |
| Wave-ski | Tsunami |
| Diving | 2 x 40lb aluminium tanks 2 x regulators and BCDs Apollo AV-2 underwater scooter |

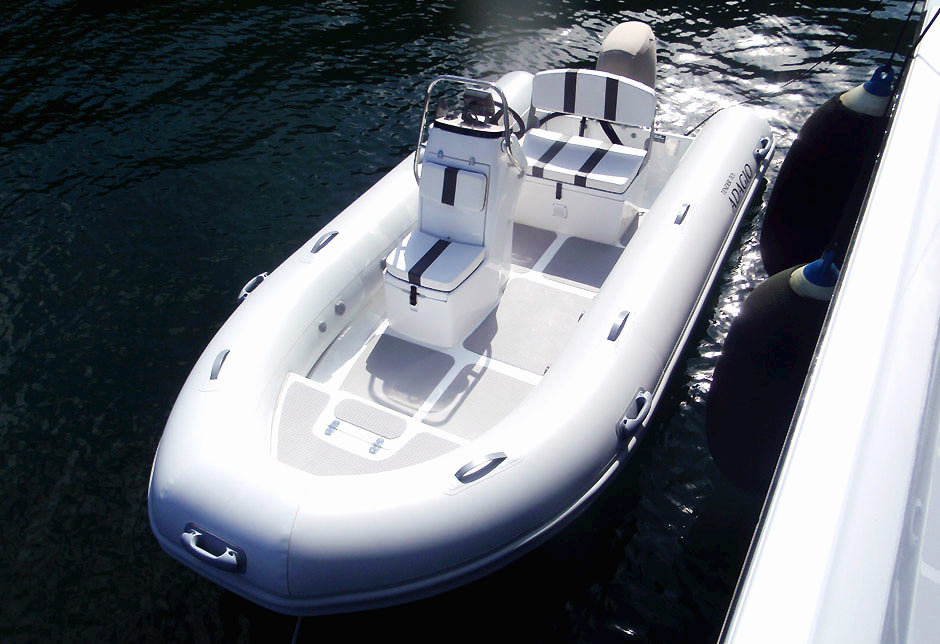

Reef Rider 4.2m aluminium RIB
